Blue Diamond Launches Hydraulic Rock Rake for Loaders

CMEQ |Construction Components

Blue Diamond Attachments has launched a new hydraulic rock rake for skid steers and CTLs, ideal for clearing 1- to 8-inch rocks and smoothing terrain.

Date: June 2, 2025

Loading...

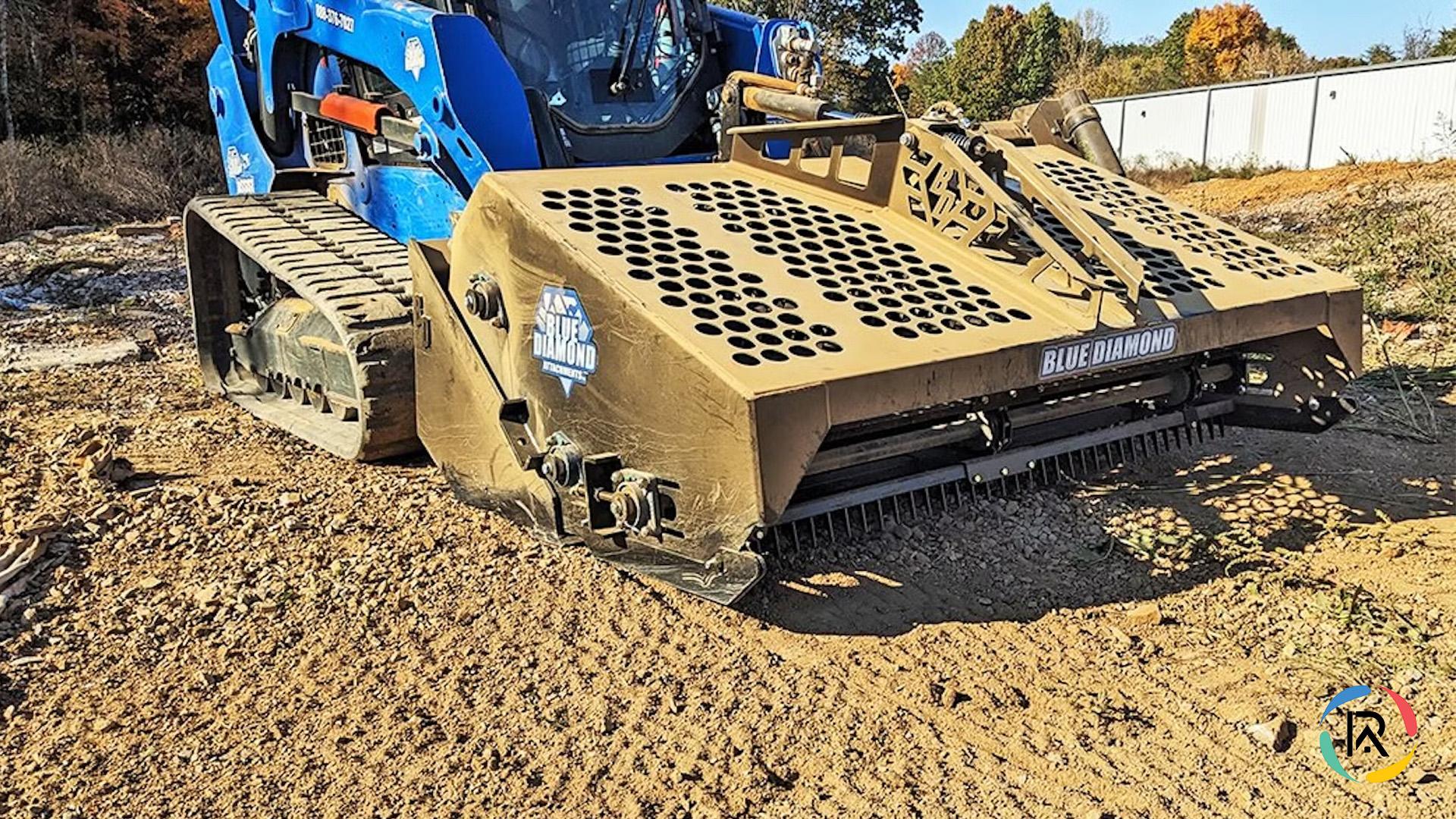

Blue Diamond Launches Hydraulic Rock Rake for Loaders
Advertisement
Subscribe – desktop
Subscribe – mobile

Knoxville, Tennessee - Blue Diamond Attachments, LLC., a construction equipment attachments manufacturer, has launched a new hydraulic rock rake designed for skid steers and compact track loaders (CTLs), ideal for clearing rocks ranging from 1 inch to 8 inches and smoothing terrain efficiently.

The rake features a 68-inch-wide working width equipped with 484 staggered teeth made from durable AR400 hardened steel. These teeth are mounted on a double channel bolt-on bar system that is both reversible and replaceable, extending the attachment’s service life. Adjustable skid shoes allow operators to control working depth and reduce wear, while integrated steps provide safe and easy access to the operator’s cab.

To empty the rock-filled hopper, operators simply reverse the hydraulic flow direction. The rock rake features twelve tooth bars with a total of 484 teeth for effective rock collection and a heavy-duty hood reinforcement to protect against front impacts. It also includes a hydraulically operated top cover for easy debris transport and dumping, built-in hydraulic protection to prevent motor damage, and bidirectional operation for versatile use. The attachment is designed with a universal skid steer mounting system for easy compatibility.

This attachment efficiently removes unwanted rocks and debris, leaving a clean, level surface, helping save labor and time on landscaping jobs. It’s perfect for ground leveling and seedbed preparation, eliminating the need for hand-raking across varied terrains.

Compatible with skid steers and CTLs that have hydraulic oil flows between 13 and 23 gallons per minute, the rock rake requires two hose connections but no electrical hookups. The attachment weighs 1,638 pounds, combining rugged build quality with ease of use for landscaping and construction professionals.
